Oil dispersion (OD)
In the agrochemical industry, oil dispersion (OD) formulations are an excellent delivery system for water sensitive active ingredients such as sulfonylureas. An OD formulation is a solid active ingredient dispersed in oil. The oil can vary from paraffinic to aromatic solvent types and vegetable oil or methylated seed oils. Ideally, the active ingredient is uniformly suspended in the oil phase, with rheology modifiers added to reduce separation and improve the stability of the concentrate.
ODs are an excellent delivery system for water-sensitive active ingredients such as sulfonylureas. However, ODs have extended to other active ingredients due to their better spray retention, spreading, and foliar uptake, as the carrier oil often acts as an emulsifier and adjuvant.
OD formulations are a valuable part of agrochemical formulations where storage stability and property control are needed. The formulation process requires careful selection of ingredients to ensure the right balance of viscosity, dispersion, and efficacy. ODs offer advantages for actives that degrade in water and can reduce the need for external adjuvants. Choosing the right oil and surfactant system (e.g, non-aqueous dispersant) is key to achieving optimal results.
Benefits
- Especially suited to hydrolytically unstable actives allowing them to be formulated as liquid formulations
- The oil continuous phase acts as a built-in adjuvant
- The oil adjuvant can provide both penetration enhancement and spray retention enhancement
- Does not need preserving (water free)
Limitations
- Can suffer from more sedimentation compared to water based systems
- Difficult to formulate
The Formulator's Toolbox (Full Version)
Oil Dispersion Step-by-Step Guide

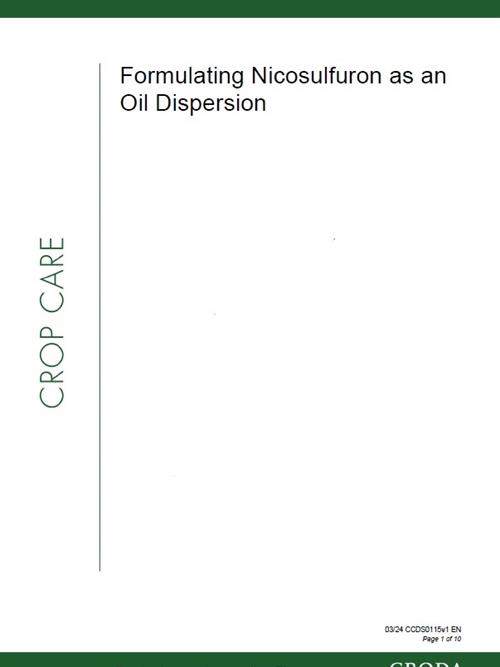

Formulating Nicosulfuron as an Oil Dispersion

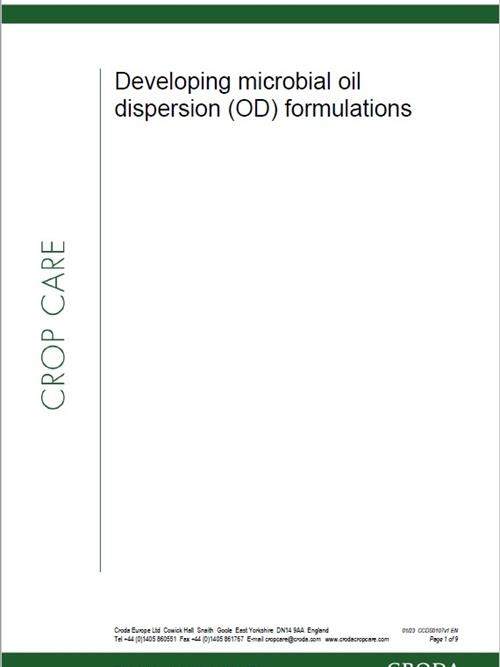

Developing microbial oil dispersion (OD) formulations
Products recommended for OD
Aqueous dispersants are used in some cases in order to improve stability in the spray tank after dilution in water. If the active ingredient is insoluble in water and needs to be suspended for a length of time, the aqueous dispersant will prevent flocculation of these solid particles and improve overall stability.
.jpg&mn=cropcare&w=768&xr=0&yr=0&xfp=6&yfp=6&hash=BE08314A4FD370F810F45D699E14893C19C138999FEC74AA)
Atlox Metasperse™ 550S
Atlox™ 4915
Atlox Metasperse™ 650S
Emulsifiers are necessary in order to emulsify the continuous oil phase into water when the OD formulation is diluted prior to being sprayed. Emulsifiers are selected based upon their ability to spontaneously form this emulsion. Their performance is primarily dictated by the nature of the surfactant and their collective effect on how they arrange themselves at the oil/water interface.
Atlas™ G-1086
Atplus™ 309F-LM
Atlox™ 4838B
Tween™ 22
Non-aqueous dispersants disperse the active ingredient in the oil continuous phase and provide long term stability. In an OD formulation, solid particles are susceptible to flocculation, leading to an increase in particle size and formulation instability. To prevent this, the use of a polymeric dispersant is highly recommended.
Atlox™ 4916
Atlox™ 4914
Atlox™ LP-1
Zephrym™ PD2206
Oil composition and quality may impact formulation performance either upon production or upon extended storage. Variations from oil to oil can commonly occur depending on the source so strict specifications should be applied to the chosen oil and stuck to throughout the lifetime of that material. Croda’s range of Seatons Refined Oils are 100% natural and renewable. They are also impurity free and have a good compatibility with many active ingredients, making them great options for crop care formulations.
.jpg&mn=cropcare&w=768&xr=0&yr=0&xfp=6&yfp=6&hash=BB9E08CCA29C7EA9890679CCAB89BACB19C138999FEC74AA)
Seatons refined linseed oil
Seatons refined rapeseed oil
Rheology modifiers are an essential part of an OD formulation. If the formulation is not stabilised effectively, the solid active ingredient(s) will sediment forming a hard pack layer preventing re-dispersion. A common way to reduce this sedimentation is to increase the viscosity of the continuous phase using a rheology modifier.
.jpg&mn=cropcare&w=768&xr=0&yr=0&xfp=6&yfp=6&hash=95EA288BC8762DCB34DEC3D4091BDF0419C138999FEC74AA)
Atlox Rheostrux™ 100
.jpg&mn=cropcare&w=768&xr=0&yr=0&xfp=6&yfp=6&hash=11B8A71797BADCC24ACDC1145A3EB96519C138999FEC74AA)
Atlox Rheostrux™ 200
